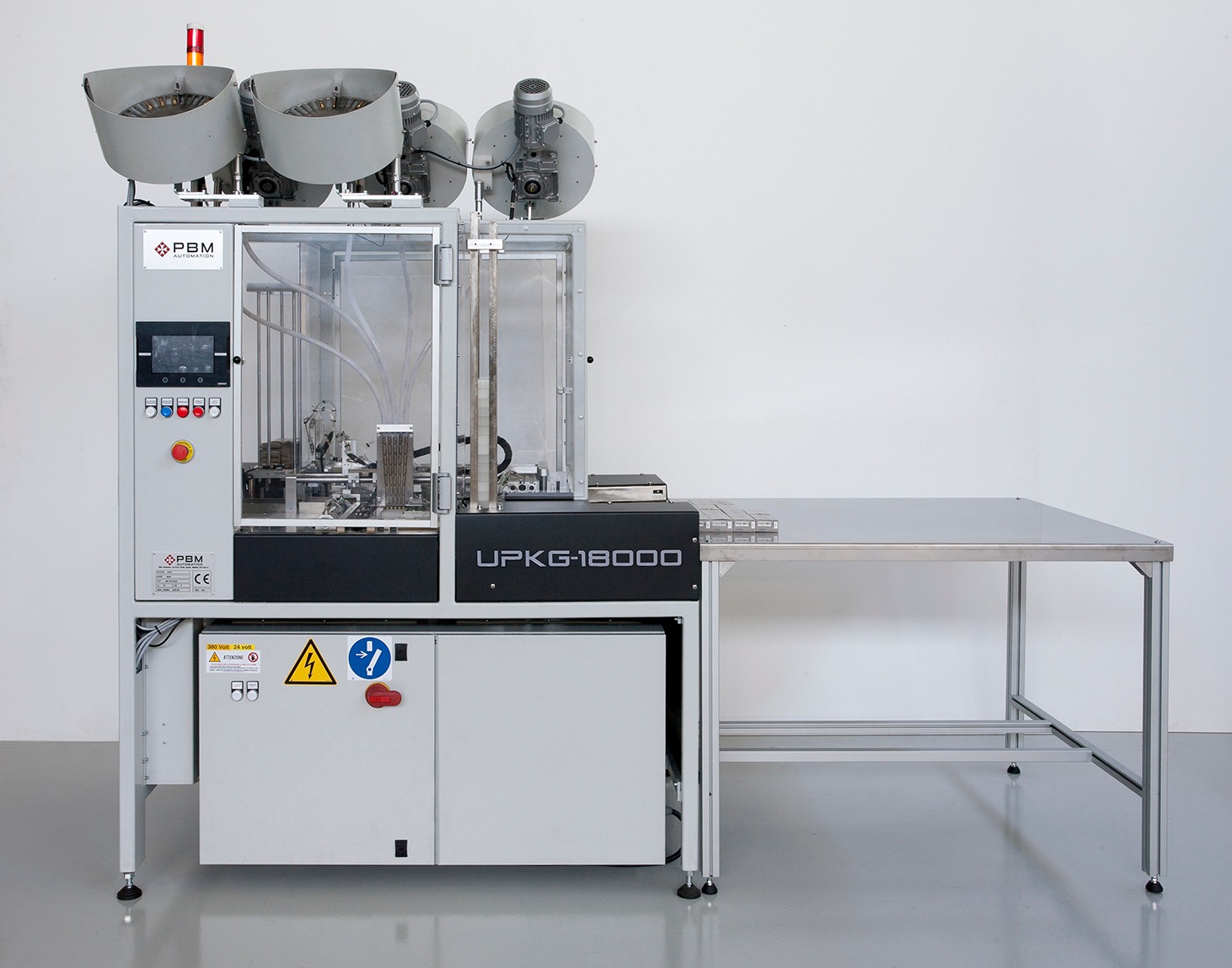

UPKG-18000

At PBM Automation we are very proud of our high output Universal Packaging 18000 machine. This 5 feeders multiple calibers automatic and computerised machine can pack up to 18000 rounds per hour, in 50-count ammunition plastic trays and external cardboard individual boxes. The 50 rounds boxes are delivered orderly on a side table (supplied with the machine) where a single operator can pack them in the 1000 or 2000 rounds UN boxes or metal cans. The UPKG 18000 can serve up to 4 lines of UP4000 and UL4000 pistol priming and loading machines, making the whole process of ammunition assembly and packaging very economical and viable also for small enterprises.

Universal Packaging Machine - Pistol Calibers

The PBM Automation UPKG 18000 pistol packaging machine allows packaging different pistol calibers with almost no changes and adjustments in 50-count plastic trays and boxes. The caliber groups are below specified. 50 count plastic trays are also available from PBM Automation for startup of operations or as a steady supply.

Technical Specs

  • Hour Production Capacity: up to 18000 Rounds (9mm)
  • Dimensions in mm: 1470x1000x2320h
  • Weight: 620 KG.
  • Max Power Consumption: 3,0 Kwh
  • Compressed Air Consumption: 120 l/Min.
  • Max Noise Level: ≤72 Db

  • Group A
  • .380 ACP
  • 9mm Luger
  • .30 Luger (7.65mm Luger)
  • 9mm Makarov
  • .30 Mauser (7.63 Mauser)
  • .356 TSW
  • 9mm FAR
  • 9mm x 21 IMI
  • 9mm x 23 Winchester
  • .38 Super Comp
  • Group B
  • .38 Special
  • .357 Magnum
  • .38 Long Colt
  • .22 Remington Jet
  • .357 Remington Maximum
  • .38 Smith & Wesson
  • Group C
  • .357 SIG
  • .40 S&W
  • 10 Auto
  • Group D
  • .45ACP
  • .45 Glock Action Pistol
