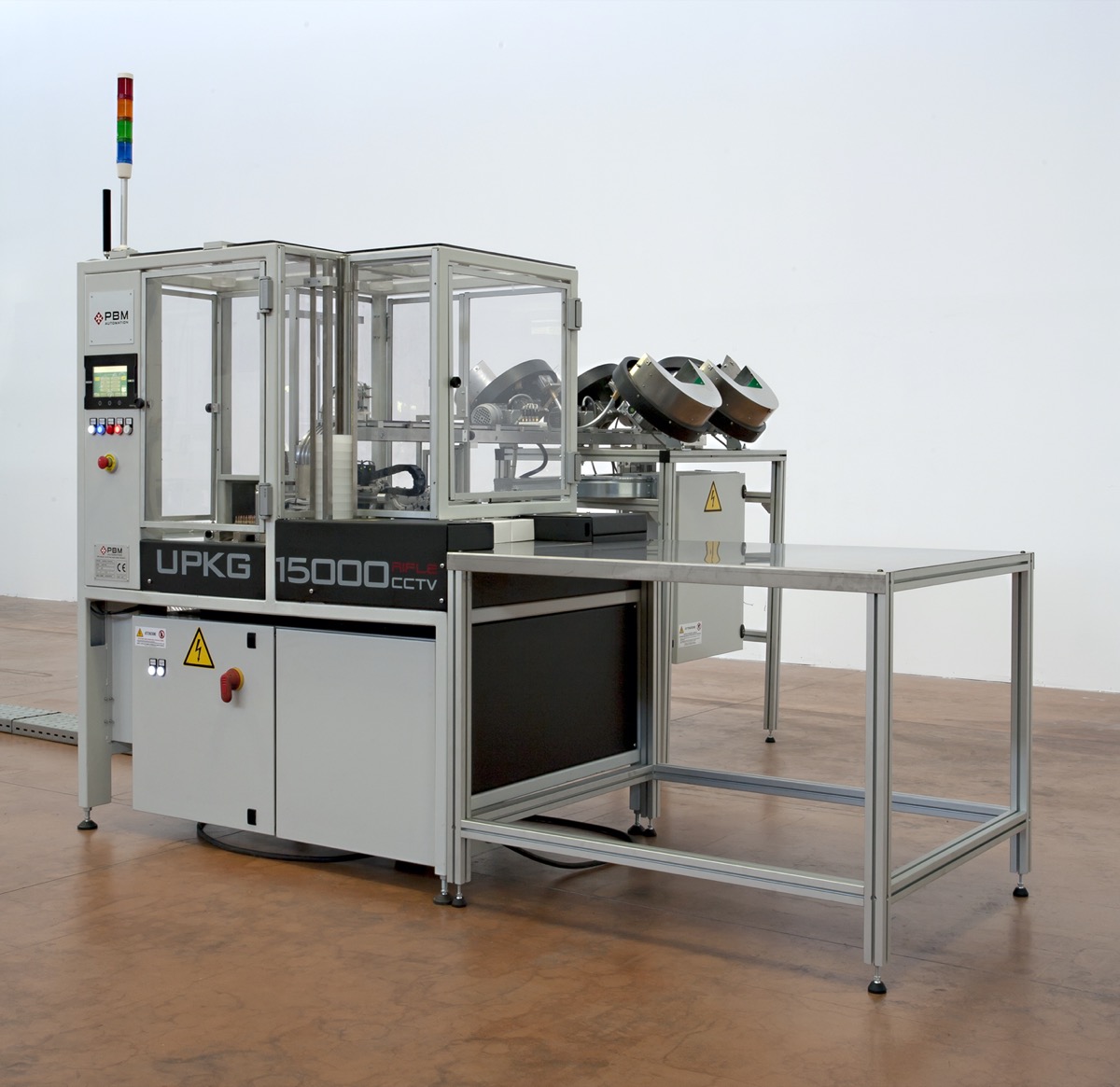

UPKG-15000
At PBM Automation we are very proud of our high output Universal Rifle Packaging 15000 machine. This 5 feeders multiple calibers automatic and computerised machine can pack up to 15000 rounds per hour, in 50-count ammunition plastic trays and external cardboard individual boxes. The 50 rounds boxes are delivered orderly on a side table (supplied with the machine) where a single operator can pack them in the 1000 or 2000 rounds UN boxes or metal cans. The UPKG 15000 can serve up to 4 lines of UP4000 and UL4000 Rfile priming and loading machines, making the whole process of ammunition assembly and packaging very economical and viable also for small enterprises. For 20-count plastic trays and boxes the machine has to be set up at order and cannot be user-defined at a later stage.


Universal Packaging Machine - Rifle Calibers
The PBM Automation UPKG 15000 Rifle packaging machine allows packaging different rifle calibers with almost no changes and adjustments in 50-count plastic trays and boxes. The caliber groups are below specified. 50 count plastic trays are also available from PBM Automation for startup of operations or as a steady supply. The longest caliber allowed by our 4000 Series of machines is .338 Lapua Magnum and similar caliber OAL.
Technical Specs
- Hour Production Capacity: up to 15000 Rounds (.223 Rem)
- Dimensions in mm: 1470x1000x2320h
- Weight: 620 KG.
- Max Power Consumption: 3,0 Kwh
- Compressed Air Consumption: 120 l/Min.
- Max Noise Level: ≤72 Db
- Group A
- .223 Remington
- .204 Ruger
- .17 Remington
- .17 Remington Fireball
- .221 Remington Fireball
- .222 Remington
- .222 Remington Magnum
- 6mm x 45
- .300 AAC Blackout
- Group B
- 6.5 Creedmoor
- .308 Winchester
- .22 Bench Rest Remington
- .22-250 Remington (.22 Varm)
- .240 Weatherby Magnum
- .243 Winchester
- 6mm Bench Rest Remington
- 6mm Remington (.244 Remington)
- .25-06
- .250 Savage (.250-3000 Savage)
- Show more
- .257 Roberts
- .260 Remington
- 6.5mm-06
- 6.5-284 Winchester
- 6.5 x 47 Lapua
- 6.5mm x 57
- .270 Winchester
- .280 Ackley Imp (Nosler)
- .280 Remington (7mm Exp. Rem.)
- .284 Winchester
- 7mm Bench Rest Remington
- 7mm-08 Remington
- 7mm x 57 Mauser (7mm Mauser)
- 7mm x 64 Brenneke
- .30 T/C
- .30-06 Springfield
- .300 Savage
- 8mm x 57 Mauser (8mm Mauser)
- 8mm-06
- .338 Federal
- .338-06
- .35 Whelen
- .358 Winchester
- 9.3mm x 62 Mauser
- .370 Sako Mag/9.3x66 Sako
- Group C
- .300 Winchester Magnum **
- 6.5 PRC
- 7mm Remington Magnum
- .257 Weatherby Magnum
- .264 Winchester Magnum **
- 6.5 Remington Magnum
- .270 Weatherby Magnum
- 7mm Shooting Times Westerner
- 7mm Weatherby Magnum
- .300 RCM
- Show more
- .30-338 Winchester Magnum
- .300 Holland & Holland Magnum
- .300 Weatherby Magnum
- .308 Norma Magnum
- 8mm Remington Magnum
- .338 RCM
- .338 Winchester Magnum
- .340 Weatherby Magnum
- .350 Remington Magnum
- 9.3mm x 74 Rimmed
- .375 Ruger
- .375 Holland & Holland Magnum
- .416 Ruger
- .416 Remington Magnum
- .450 Marlin
- .458 Winchester Magnum
- Group D
- 7.62mm x 39
- 6mm PPC
- .22 PPC
- .264 LBC-AR
- 6.5 Grendel
- 6mm ARC
- Group E
- .30-378 Weatherby Magnum
- .338 Lapua Magnum (With Lapua Brass)
- .338-378 Weatherby Magnum
- .378 Weatherby Magnum
